'SHOPFLOOR_PP' Table

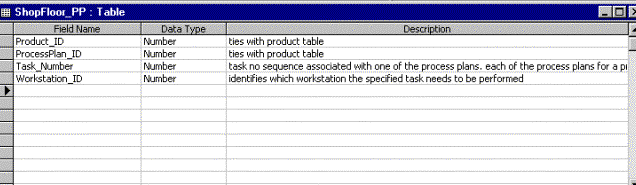

The ‘ShopFloor_PP’ table provides the first level of abstraction for the process plan. It can be visualized as containing information regarding an operating route summary, which details the workstations each product needs to go and the order in which they need to visit them.

It needs to be kept in mind that each product can have multiple process plans associated with it. These multiple process plans are identified by a combination of the ‘Product_ID’ and ‘ProcessPlan_ID’ fields, which act as a combined primary key. Each task associated with a particular process plan will be defined only in terms of the workstation used for that particular task. The further ‘explosion’ of activities from the workstation level is contained in a separate table.

The linearized process plans have been stored in two separate tables. The first one contains information at the shop floor level, only defining the tasks in terms of the order in which the part needs to visit the different workstations. The second table contains information regarding the specific tasks associated with the product at each of the material processor, material handler, and material transporter, at each of the workstation during each visit.
