Door Knobs - Process Plans
| Penn State University | ||||||
|---|---|---|---|---|---|---|
| Process Plan | ||||||
|
Part Name: PSU Door Knobs ( Lion, OldMain, Paw, Football) |
||||||
|
Material: 6061 Aluminum |
||||||
|
Operations routing summary |
||||||
| ITEM | EQUIPMENT | DESCRIPTION | TIME (min) | |||
| Lion | OldMain | Paw | Football | |||
| 1 | Kardex | Retrieve stock bar. | 0.1 | 0.1 | 0.1 | 0.1 |
| 2 | SL-20 Servo Bar 300 | Face knob end. Turn shaft portion of knob. Drill central hole. | 4.8 | 4.8 | 4.8 | 4.8 |
| 3 | SL-20 | Turn top of knob profile. | 2.9 | 2.9 | 2.9 | 2.9 |
| 4 | VF-3 | Locator hole.Mill knob face profile. Drill and tap | 8 | 8 | 10 | 10 |
| 5 | EDM | Square shape central hole | 10 | 10 | 10 | 10 |
| 6 | Kardex | Store product | 0.1 | 0.1 | 0.1 | 0.1 |
|
Item No. 2
|
Equipment: HAAS SL-20 Servo Bar 300
|
|||||
|
Op.
|
Description
|
Tooling
|
Machining Parameters
|
TIME (min)
|
||
|
N (rpm)
|
f (ipr)
|
d (in)
|
||||
| 10 | Clamp bar | 3 jaw chuck |
0.1
|
|||
| 20 | Face knob end | RH face tool |
1500
|
0.01
|
0.05
|
0.4
|
| 30 | Rough turn knob shaft portion | RH tool 3/64 nose radius |
1500
|
0.01
|
0.05
|
3.4
|
| 40 | Finish turn knob shaft portion | RH tool 3/64 nose radius |
1800
|
0.005
|
0.01
|
0.4
|
| 50 | Drill central hole | .3594 in taper shank drill HSS M1 |
500
|
0.01
|
1.2
|
0.33
|
| 60 | Unload and inspect |
0.2
|
||||
|
Item No. 3
|
Equipment: HAAS SL-20
|
|||||
|
Op.
|
Description
|
Tooling
|
Machining Parameters
|
TIME (min)
|
||
|
N (rpm)
|
f (ipr)
|
d (in)
|
||||
| 10 | Clamp bar | 3 jaw chuck |
0.1
|
|||
| 20 | Face knob profile face | RH face tool |
1500
|
0.01
|
0.05
|
0.4
|
| 30 | Rough turn knob profile | RH tool 3/64 nose radius |
1500
|
0.01
|
0.05
|
3.4
|
| 40 | Finish turn knob profile | RH tool 3/64 nose radius |
1800
|
0.005
|
0.01
|
0.4
|
| 50 | Unload and inspect |
0.33
|
||||
|
Item No. 4
|
Equipment: HAAS VF-3
|
|||||
|
Op.
|
Description
|
Tooling
|
Machining Parameters
|
TIME (min)
|
||
|
N (rpm)
|
f (ipr)
|
d (in)
|
||||
| 10 | Clamp part | 3 jaw chuck |
0.2
|
|||
| 20 | Mill profile face | 1/32 in End Mill |
6000
|
15 (Paw), 5 (Lion, OM, FB)
|
0.05
|
7(Lion), 7(OM), 8.7(Paw), 8.7(FB)
|
| 30 | Rotate 90° and Center drill | Center drill |
3000
|
15
|
0.1
|
0.33
|
| 40 | Drill locator hole | .204 in taper shank drill HSS M1 |
3000
|
15
|
0.7
|
0.25
|
| 50 | Tap locator hole | .246 in tap drill 20 UNF thead |
1064
|
38
|
0.4
|
0.33
|
| 60 | Unload and inspect |
0.2
|
||||

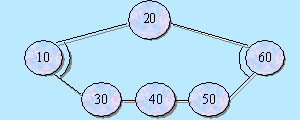

Legend
 |
 |
|
The graphs following each table show the sequence
of operations in the Operations Routing Summary and the Process
Plans.
Each node represents an operation identified by its number. All the operations that must be done but whose order may change are connected with an AND junction, whereas operations that must follow a strict sequence appear in that order in a single branch of the graphs. The schemas show which operations correspond to the each node in the process plans. |
|
