James Wilson's Senior Thesis

		PRICEWATERHOUSECOOPERS oslo, norway JAMES WILSON structural option

BUILDING STATISTICS

Building Data:

	Building name:	PricewaterhouseCoopers
	Location & Site:	Bjørvika B10A, Oslo, Norway
	Building Occupant Name:	PricewaterhouseCoopers
	Occupancy:	Office building
	Size:	14 000 m2
	Number of stories:	12 stories above grade 2 stories below grade
	Cost:	300 mill NOK
	Date of completion:	November 2008
	Project delivery method:	Design bid build with construction manager as agent

Project Team Directory:

Role	Firm	Website
Owner	Oslo S Utvikling AS Dronning Eufemias gt. 8 N-0051 Oslo	www.osu.no
Architect	Arkitekturlaboratoriet AS Drammensveien 130 0277 Oslo	www.a-lab.no
Structural Engineer	Multiconsult AS Nedre Skøyen vei 2 0276 Oslo	www.multiconsult.no
Construction Manager	Vedal Prosjekt AS Postboks 58, Lilleaker 0216 Oslo	www.vedal.no
Interior Architect	Beate Ellingsen AS Fredensborgveien 11 0177 Oslo	www.beate-ellingsen.no
Interior Architect	Arkitektene AS Bogstadveien 7 a2, n-0355 Oslo	www.arkitekteneas.no
Electrical Engineer	Ingeniør Per Rasmussen Skuiveien 147 1339 Vøyenenga	www.ipras.no
Mechanical Engineer	Erichsen & Horgen AS Nydalsveien 36 N-0483 Oslo	www.erichsen-horgen.no
Fire Safety Consultant	NEAS brannconsult AS Vollsveien 13 H 1325 Lysaker	www.nbc.no
Geotechnical Consultant	Geovita AS Lilleakerveien 4 0283 Oslo	www.geovita.no
Ecconomics Consultant	Bygganalyse AS Drammensveien 147 B 0277 Oslo	www.bygganalyse.no

Architecture:

In 2003 Oslo S Utvikling hosted an international architecture competition for the lot located south of the Oslo S train lines - between the outrun of Akerselven and Middeladerparken. The competition was jointly won by MVRDV, Dark Arkitekter, and A-lab with their proposal for the Barcode development. The new PricewaterhouseCoopers (PwC) building is the first building to be completed in the Barcode strip and will be “the face” of the Barcode towards the west.

The Barcode concept is based on a series of parallel building strips aligned in a formation that will ensure a lot of air between buildings and provide good views onto and out of the site, says A-lab architect Mathias Eckman. The strip will contain a row of eight to ten buildings, each with their own individual form and character. They will however abide by certain formulas and guidelines set forth by the zoning plan that regulates shape, size, function, material use, public spaces, roofing, and entrances. There is a volume guide with specific principle forms that the buildings may take on. Each building must adhere to one of the principle forms and must be completely different from the adjacent buildings. The intention is to provide unique multifunctional architecture with a lot of light, variation and accessibility.

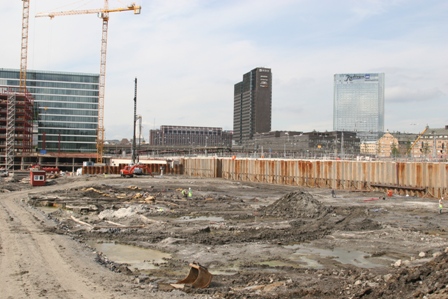

A-Lab models showing Barcode concept		Excavated Barcode site

The exterior shape of the PwC building is simple and defined. The east side runs perpendicular to Nydalen Alle and the west side follows the property line, creating a rhombus like shape in plan. There are of two stories below grade and twelve above grade with a five story opening in the center of the façade indicating the main entrance.

The program inside mainly conforms to the needs of the professional services firm, PricewaterhouseCoopers. Technical rooms and parking are located on sub grade floors. The first three floors above grade contain an auditorium, a reception area, meeting rooms, and towards Nydalen Alle, shops and restaurants. The forth through the eleventh floors hold conference rooms and office spaces. A grand cafeteria with spectacular views and outdoor dining options is located on the top floor. The core consists of a permanent technical zone that contains communication, technical installations and wet services, in addition to zones that can be designed differently depending on the need of the different departments. The story height is 3,65 meters which will be similar to all buildings in the Barcode development.

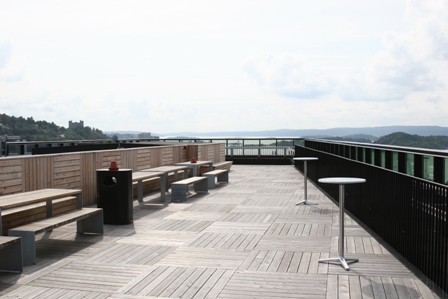

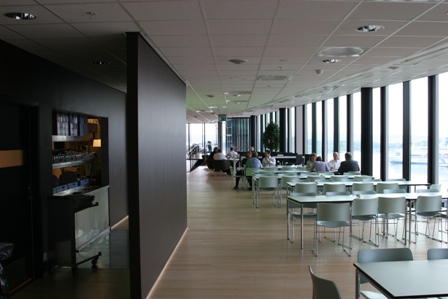

Cafeteria	Rooftop patio

The building envelope consists of curtainwall glazing, metal paneling and tar paper roof, intended to give off an impression of lightness, openness and technological sophistication. The attachment of the curtainwall to the building is made using steel brackets welded to the outside edges of the deck. The glass type chosen is Glaverbels Stopray Carat, and there are 8 different variations of this glass on the building. Determining which glass to use was challenging says A-Lab architect Mathias Eckman, as criteria for fire, sound, solar shading and safety had to be considered.

Major Model Codes:

+ Life Safety Code
+ Byggforsk
+ Norske Standarder
- Still determening others

Zoning:

+ Oslo Kommune S-4187, 16.11.2005, Regulerings bestemmelser for felt B10 i bjørvika
+ Oslo Kommune S-4099, 15.06.2004, Regulerings bestemmelser for Bjørvika - Bispevika - Lohaven

Construction

The project delivery method chosen for the PwC building was design bid build with construction manager as agent. The developer, Oslo S Utvikling, was responsible for design engineers and sub contractors. This delivery method was chosen opposed to a general contractor because the market was strained during initial stages.

Mechanical Systems

The mechanical systems are intended to provide high quality indoor climate, while maintaining efficient energy use. The building contains many office and conference rooms under varied use that require premium indoor climate. Therefore flexible and adaptable control systems are implemented. The building developer also requested a solution that would be sustainable and keep energy consumption to a minimum. Some of the systems used to accommodate these criteria are district heating and cooling, a balanced ventilation system and a building automation system.

The building is heated along the perimeter with thin tube, hot water radiators. The radiators mainly account for the heat losses through the envelope of the building. Floors 5 through 11 contain approximately 70 radiators per floor, each radiator with a heating capacity of 600W/h. Further individual temperature adjustment is provided by variable air valve (VAV) with reheat air systems. Each office and conference room controls their own VAV with reheat air system. There are two main air handling units on each floor which supply air to the various spaces. The building is cooled using water provided from Akerselva. During the colder seasons, freecooling is used, which utilizes air directly from outside. All the buildings technical installations are zone controlled by a web-based building atomization system (BAS). This system regulates HVAC, lighting, electrical, safety and security systems.

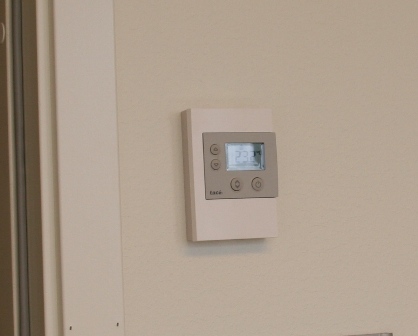

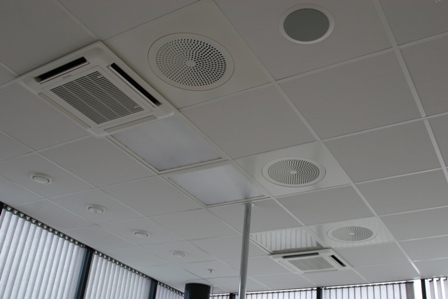

Conference room ceiling	Perimeter Radiators	Control Display

The heating and cooling central is currently located in the basement of the building and is intended to be a temporary solution, but it can also be permanent if need be. There are plans to build a central supply for the entire Barcode district, which the PwC building could eventually take use of.

Electrical

The buildings electrical system runs on a on a 230/400V 3 phase 4 wire system. If power were to be lost during an emergency, power will be provided by a diesel generator located in the basement. Keeping energy consumption to a minimum was one of the architects and developers design goals; however with the clients wishes for an all glass façade and high quality indoor climate their goal was achieved only to a certain degree. The buildings overall energy consumption is estimated to be 156 kWh/m2/year. With the growing focus on sustainable design, there will be made greater efforts to reduce energy consumption in the following Barcode buildings.

Lighting

Lighting fixtures were chosen on a basis of providing the desired amount of light for intended use, energy consumption, aesthetics, flexibility and economy. Office and hallways are typically lit with suspended direct/indirect compact florescent lighting fixtures. Conference rooms typically use a combination of wallwashers and recessed direct compact florescent lighting. Public areas mainly use recessed circular compact florescent down lights.

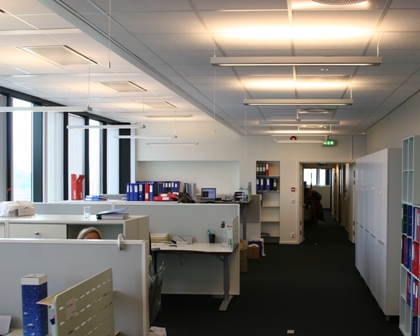

Direct/indirect	wall washers	Down lights

Structural

The superstructure of the building consists of precast concrete plank decking on steel frame with cast in place concrete cores. The hollow core concrete planks are Hollow Core 265’s and have typical sections of 120cmx30cm, with spans ranging from 10 to 20 meters. Along the interior of the building, planks typically rest on steel angles fastened to the concrete core. Along the exterior, planks typically rest on the bottom flange of a special steel beam. These beams are fabricated by precast engineer and integrate the beams into deck height, creating extremely low floor to floor height. The steel beams are supported by circular hollow structrual steel columns filled with reinforced concrete. The opening in the center of the front facade created by using three steel trusses that transfer the loads either side of the building. During construction, the structure was supported by two temporary columns that were removed after the integrity of the truss was intact. Lateral resistance is provided by reinforced concrete shear walls located within the building. The lateral system is integrated into the sub grade floors, which are comprised of cast in place concrete. They act as a base to distribute overturning moments into the foundation. The foundation uses steel piles driven between 100ft and 130ft to bedrock.

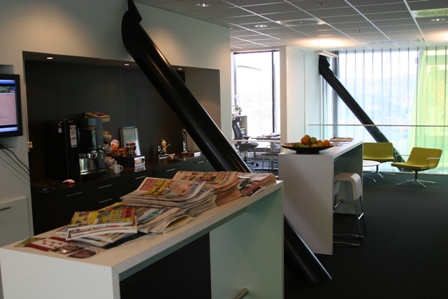

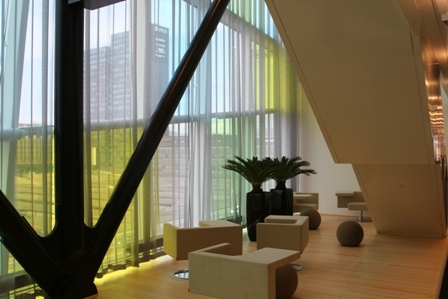

Steel truss over opening in facade	Steel truss over opening in facade

Fire protection

The building is fully sprinkled and exposed steel members are painted to provide a fireclass rating of A60 and A90. The designation A60 is a fire rating in accordance with NS 3919 and is equivalent to R60 of the Eurocodes.
Eurocode rating description:
R – indicates the construction is bearing.
60 – indicates the number of minuets material is rated.

Transportation

There are three stair towers and four elevators that account for vertical transportation through the building. Although still under development, service routes will be directed through sub grade roads that connect with buildings to the West. Service routes from sub grade levels to the cafeteria will happen through a key-card accessed elevator, which goes directly to the top floor. Zoning regulates the maximum number of parking spaces allowed in order to minimize use of cars in the city. Oslo has one of the best public transportation networks in the world, says A-Lab architect Mathias Eckman, and we would like to encourage the use of it.
