Technical Assignments

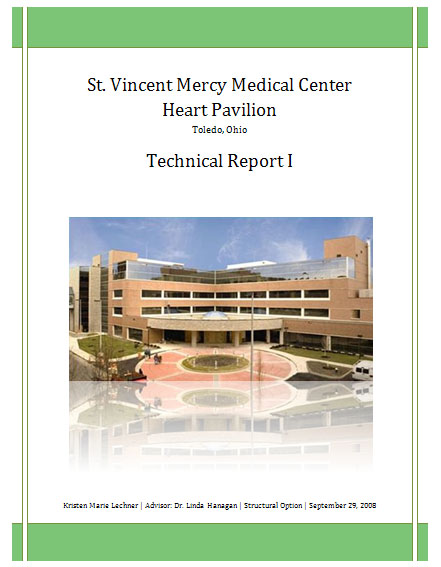

Technical Report I: Existing Conditions Technical Report I examines existing structural conditions of St. Vincent Mercy Medical Center Heart Pavilion in an attempt to better understand the design decisions made at the onset of the project. A summary of building codes and material strengths used by the engineer of record are included within this report. A detailed description of the foundation, floor system, columns, and lateral system is also provided. Spot checks of gravity loads were done within a typical bay in an effort to check the validity of member sizes chosen. Basic wind and seismic calculations were prepared in order to further understand why the structure was designed as it was.
Technical Report II investigates alternate floor systems through the preliminary design of a typical interior bay. Three alternative floor systems and the existing floor system are compared with respect to cost, constructability, serviceability, architecture, and fire protection. Conclusions are then drawn about the overall efficiency of each design, and whether it is still a viable solution for an alternative floor system within St. Vincent Mercy Medical Center Heart Pavilion.
To view a PDF version of Technical Report II, click here or on the image to the right. Technical Report III: Lateral System Analysis Technical Report III provides a thorough lateral analysis for the structure of St. Vincent Mercy Medical Center Heart Pavilion through detailed hand calculations and modeling via RAM Structural System and SAP 2000. Lateral forces determined in the preliminary analysis prepared for Technical Report I were verified using RAM Structural System. Upon comparison, it was concluded that the preliminary calculations provided satisfactory approximations of story loads. In order to determine how lateral loads were distributed throughout the lateral system, the relative stiffness of each moment frame was calculated. Once the relative stiffness of each frame was determined, torsion forces were calculated in order to determine the controlling load case for the structural design of this building. Due to the unique shape of this building, wind loading induced greater torsion effects than seismic loading. However, since the soil is classified as site class E, the seismic base shear, when coupled with the torsion effects for seismic, ultimately controls the design of the building. Spot checks for lateral members were also prepared to better understand why member sizes were chosen by the engineer of record. It was determined that the girders and columns within the lateral system are more than adequate for strength and serviceability requirements. To view a PDF version of Technical Report III, click here or on the image to the right.
|
|||||||||||||||||||||
