Executive Summary

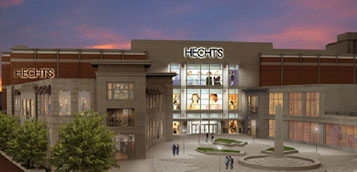

Architecture
Simple but attractive façade
Draping of pre-cast panels with glass curtain walls
Accented by aluminum mullions
Project Team
Owner - Federated Department Stores
Architect - Kvell Corcoran Associates
Developer - New England Development Engineers
GC - Buch Construction
Structural
Lightweight concrete slab on metal deck
Supported by structural steel
Pre-cast panel system utilizing several connection types
foundation consists of a cast-in-place reinforced parking garage
Mechanical
(2) 230 ton chillers with power induction boxes
Penthouse on the roof
VAV AHU’s utilized through out the building
Electrical
Feeder service of 3000 A, 3 phase, 277/480v
Bus rating of 4000A tin plated, aluminum lug
Natural gas emergency generator—80 kWjhghh
